Eaton HO52/72's
« on: December 26, 2012, 03:10:05 AM »
Anyone tangled with these old 3rd member beasts?
They are found in 1947(ish) to 1972(ish) GM 3/4 and 1 tons.

Commonly came with stock Detroit style lockers and 3.90,4.10,4.56 and 5.13 gears. They are full float, 10.125 ring, 17 spline axle. However a modern 14 bolt Detroit will fit in the carrier and allow you to run 30 spline 14 bolt shafts.1350 is stock yoke but 1410 yokes are available. http://www.northerndrivetrain.com/category/app_axles_eaton_h072.html

With disc brakes these axles weigh- 360 lbs.

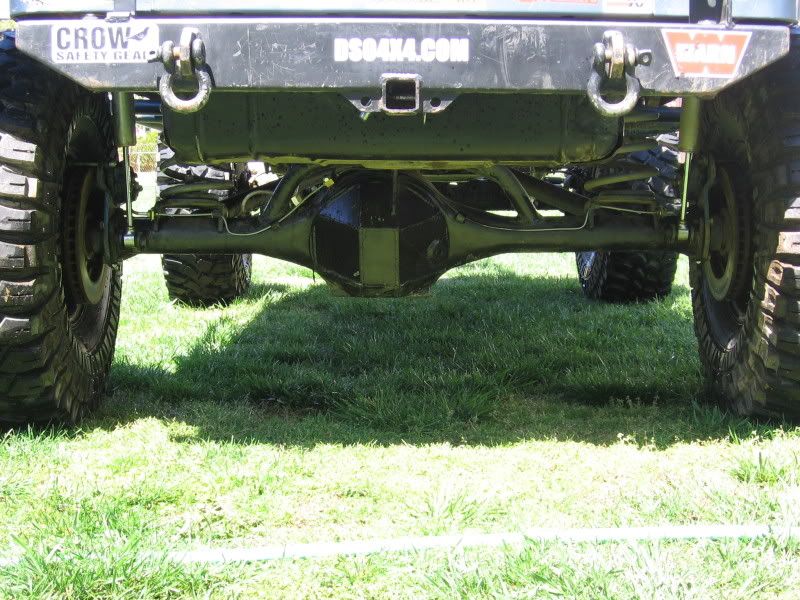

WMS measurements are sketchy at best. '59 and older are all 63" WMS, be it SRW or DRW. Post 59 are 65"
Axles under vans are said to be 70" wide.

They are an all metal housing, no cast. So they're really easy to truss,weld link brackets, ect. Also can be shaved and have the clearance as good if not better than a dana 44.

Much like a 14 bolt they have a pinion support bearing.
The 72s had load bolts to keep the ring gear in check under severe loads, this is also an easy way to tell a 52 from a 72.

Disc brake setup is easy because a 14 bolt conversion bracket will fit the spindle.

From what I can tell most people don't know what they are and sell them for dirt cheap. Guys are running them hard with 40" plus tires without carnage. An axle that can be had for less than $100 with low gears and a locker that can handle 40inch tires is a damn good deal and you should keep your eyes open.

Part #s for pinion bearings
65-66 All (Full-Floating) (GM axle) (leaf springs)
Inner brg #KD-11786-y
Outer brg # KB-11630Z
Seal # 455860

46-72 All (Full-Floating) (H050, H052, H072)
Inner brg #KD-11786-y
Outer brg # KB-11630Z
Seal # 2081

Hub Seals Napa/CR #28426

Wheel Bearings  Timken KD11786Y

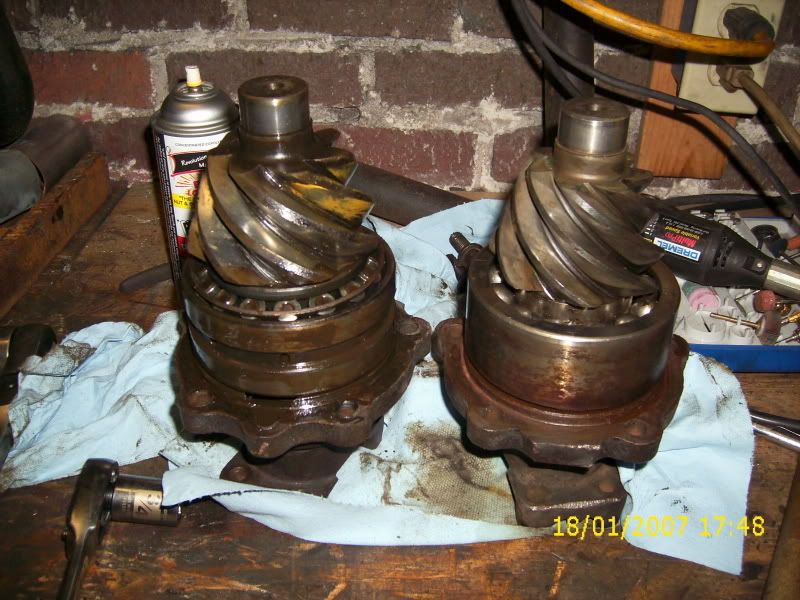

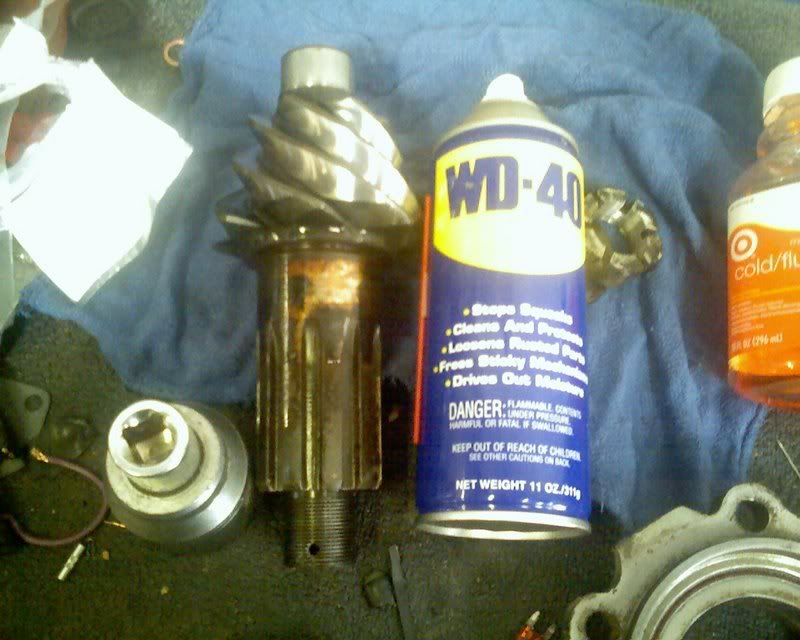

Pinion

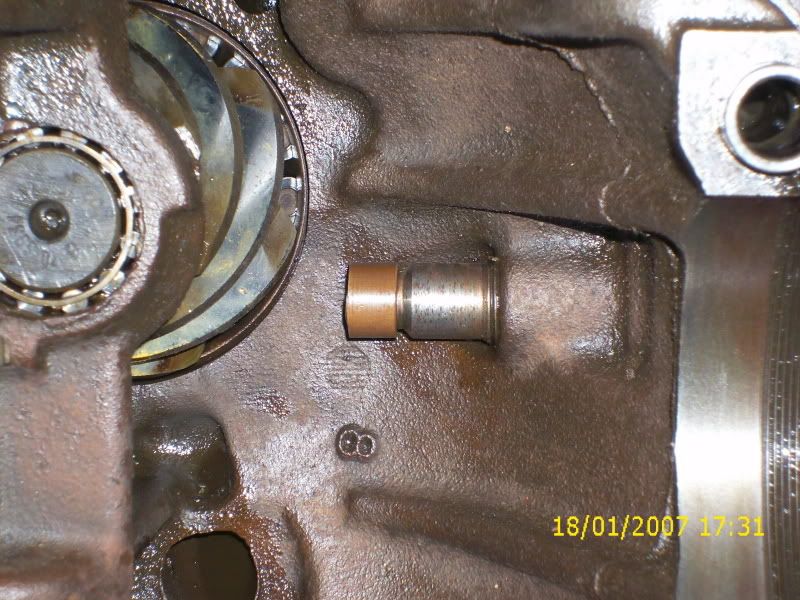

Load bolt

Earlier diffs had ball bearings while the later had more modern conical roller bearings.


Shaved

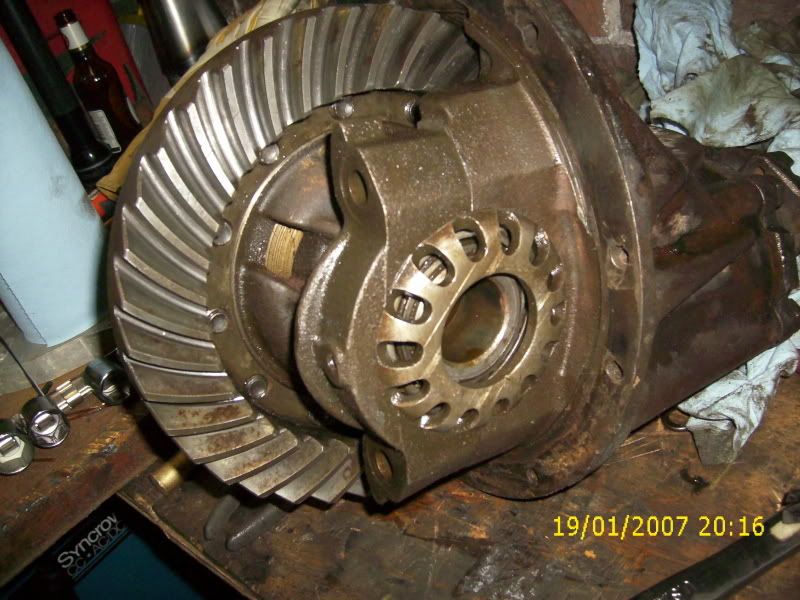

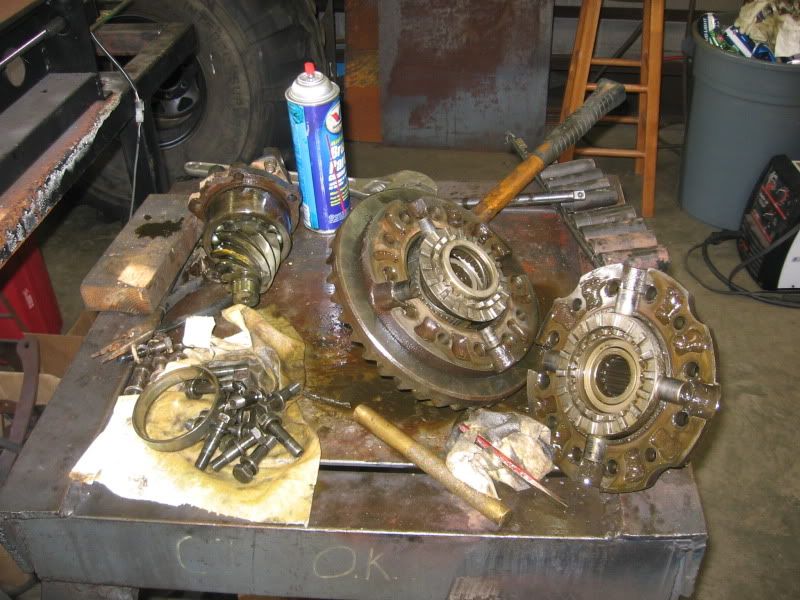

View of carrier open with detroit locker.


Generally find the axle ratio stamped here but not always. If  the ratio is accompanied by the letter "G" it has a locker


Credit for info goes to some boys on Pirate, I just compressed it ;D
http://www.pirate4x4.com/forum/chevy/771317-eaton-h072.html
